Contact us for price

Stock status: Call Store for Availability

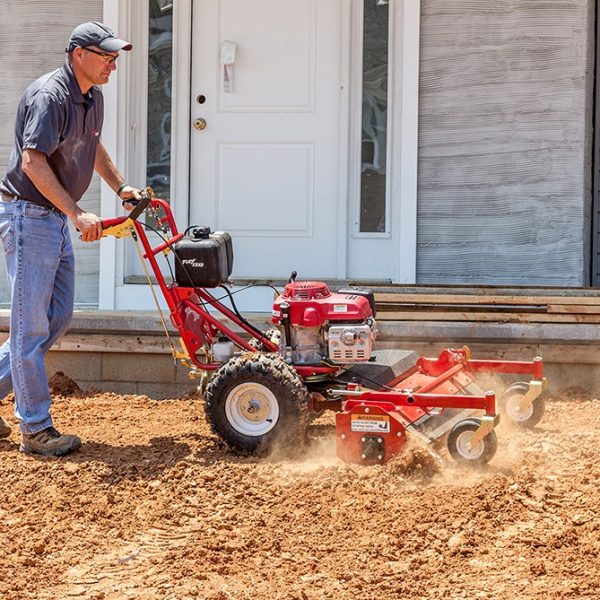

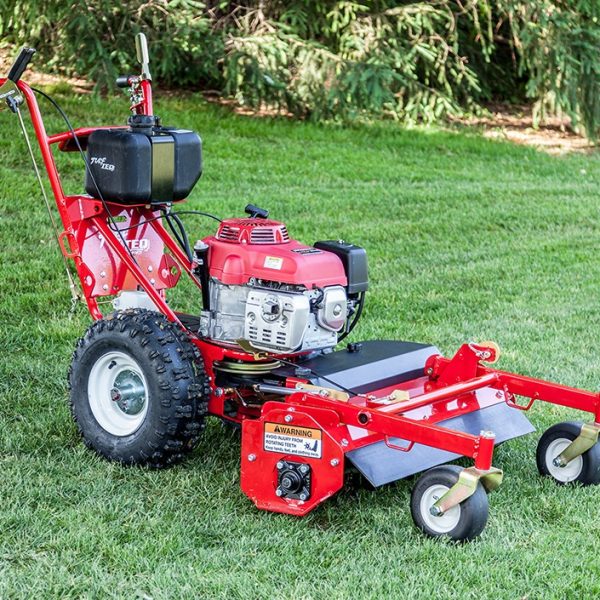

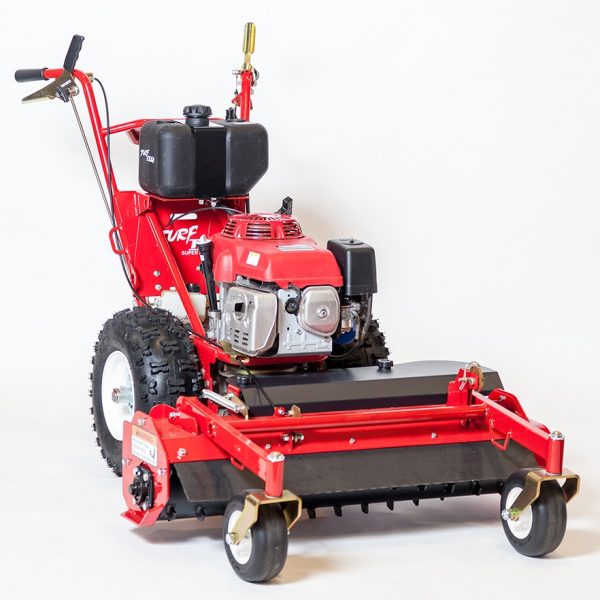

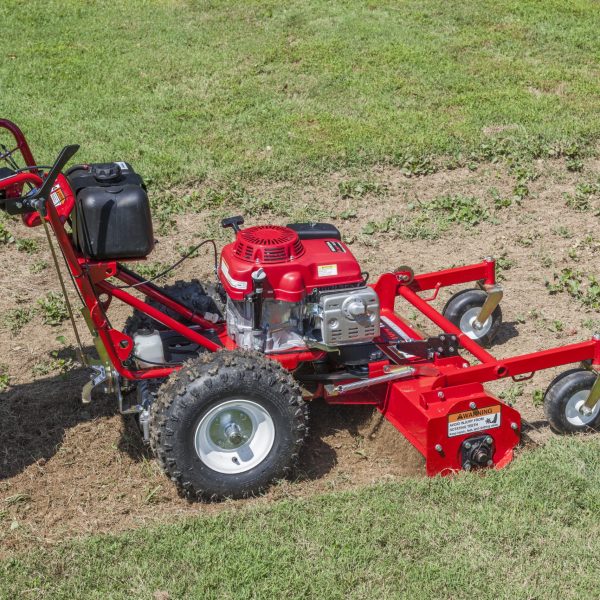

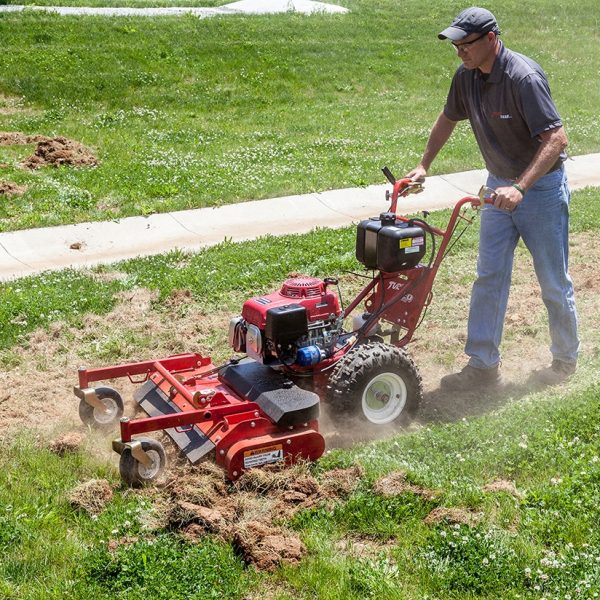

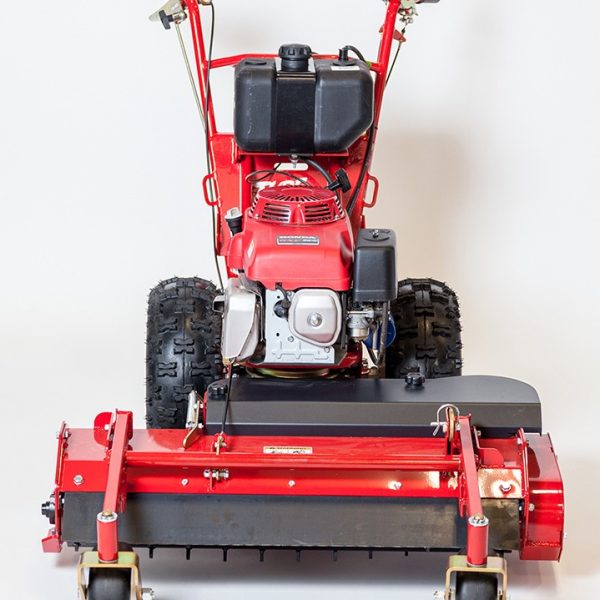

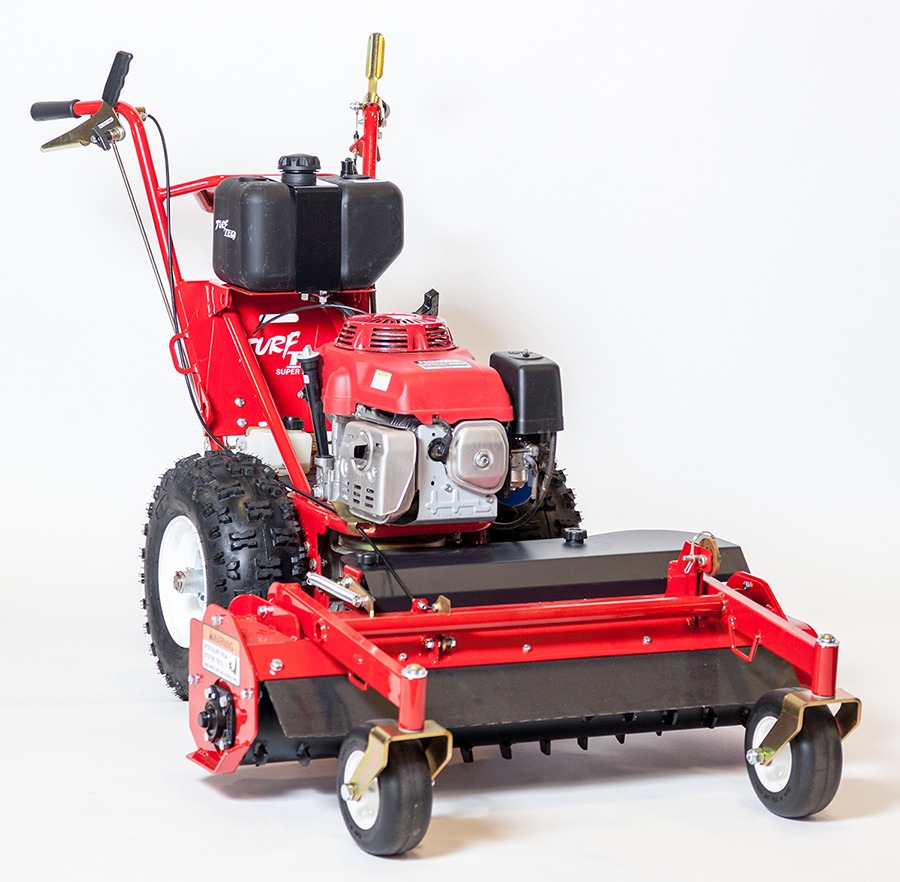

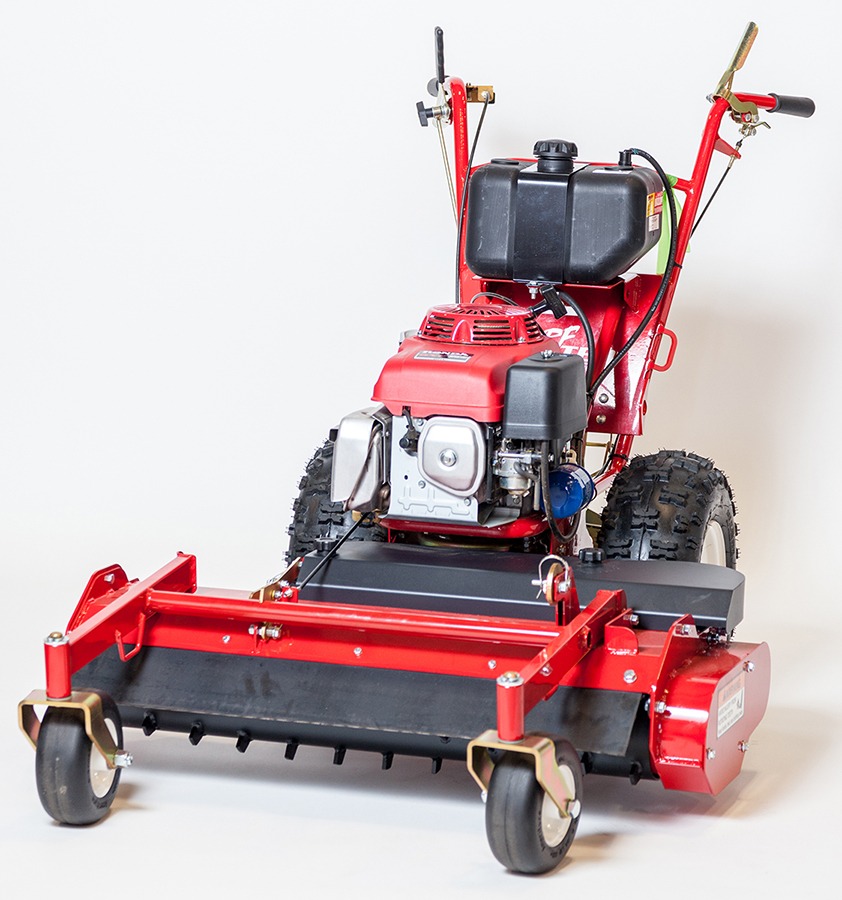

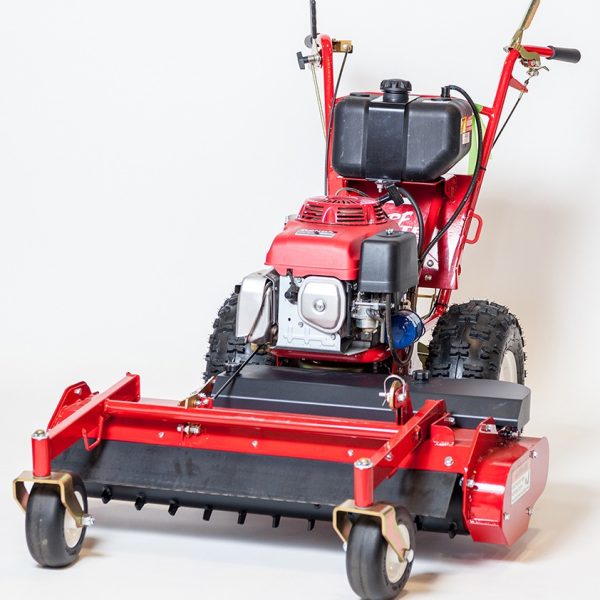

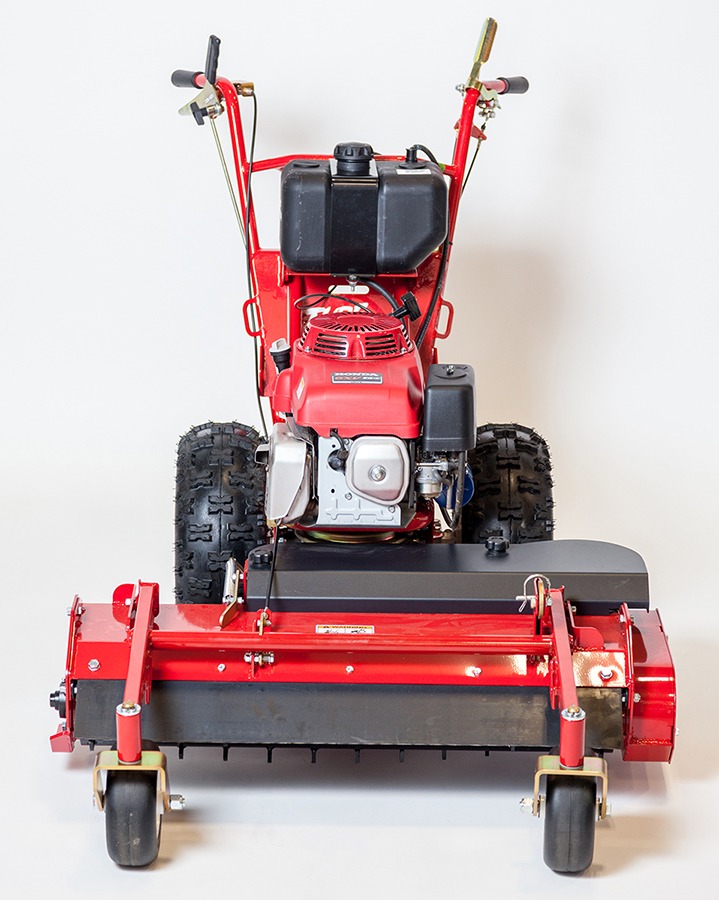

The TURF TEQ Power Rake is a valuable time-saving tool for all types of seedbed preparation, lawn renovation and raking jobs. With its compact design, the Power Rake can also go where tractor and skid steer mounted versions of this product can’t go, and can do its job without damaging healthy turf. You’ll get more work done faster and drastically increase the profitability of your business.

The Power Rake features a 36-inch wide drum that can be adjusted to pivot left or right so that debris can be windrowed. The Power Rake also features an on-the-go differential lock for exceptional traction and productivity – even on steep grades. It’s a machine that will save you incredible amounts of time on labor-intensive projects.

Call Us Now

Specs

Drivetrain

1) Engine: Honda GVX390

  • Oil: 1.1 Quart 10w-30
  • Single cylinder 4-stroke gasoline engine.
  • 390cc Displacement
  • 17.8lb-ft Torque
  • Splash/Pressure Lubrication
  • Recoil Start

2) Transmission: Hydrostatic Tuff Torq K62

  • Power Forward/Reverse
  • Oil: 10w-30
  • Torque Rating: 217lb-ft
  • Top Speed 4.5MPH
  • Locking Differential

3) Attachment Power: Mechanical Clutch/Brake to belt drive. NORAM Clutch.

  • Belt Drive From Clutch to Reduction Gearbox
  • #50 Chain Drive From Gearbox to Rake Rotor

Frame Specs

1) Schedule 40 welded steel tube

2) Powder Coated Frame

3) Multi-use Tractor can be used for other attachments

Machine Features

1) Transmission features differential lock

2) Max Digging Depth – 2” below surface

3) Liquid ballast filled drive tires

4) 2.5 Gallon Fuel Tank.

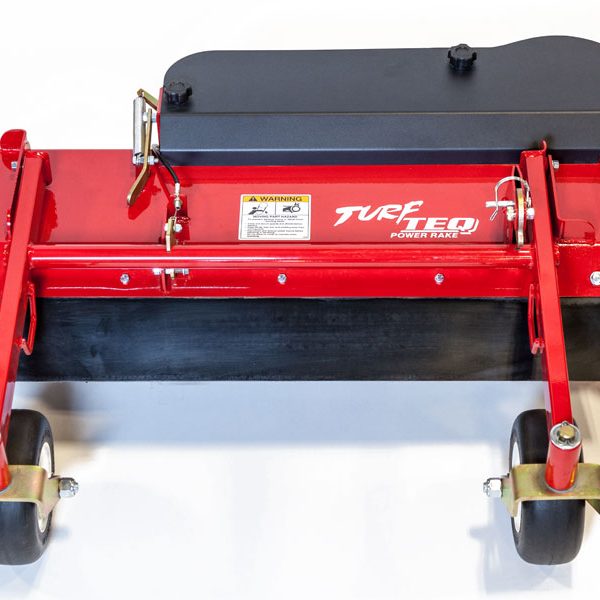

Rake Specifications

1) 36” Wide Drum

2) Pivots – 32 degrees of total movement

  • Pivot controlled by hand Trigger at Operator Station

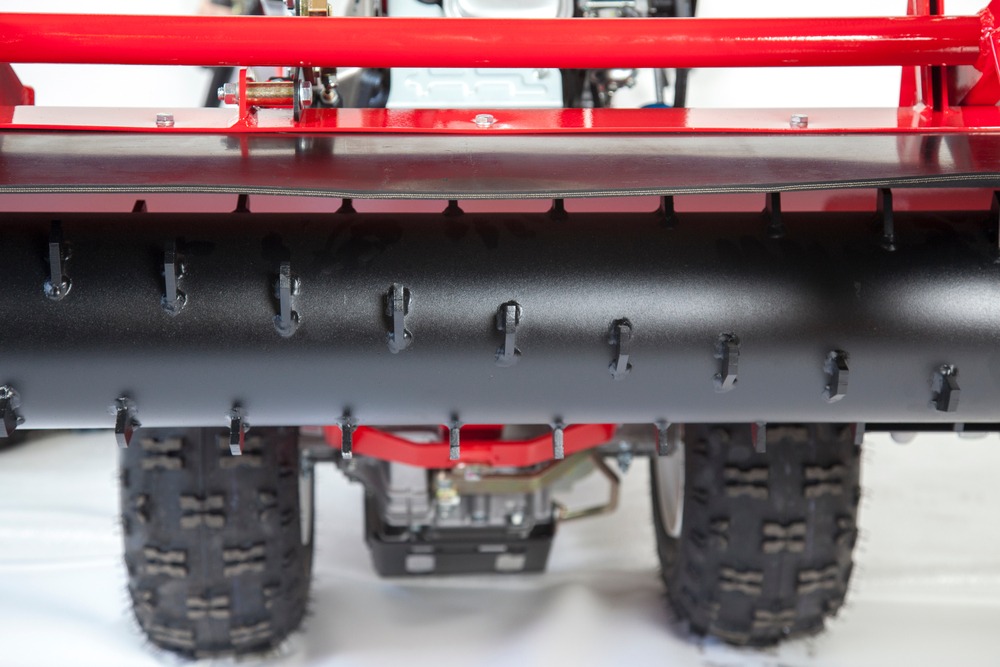

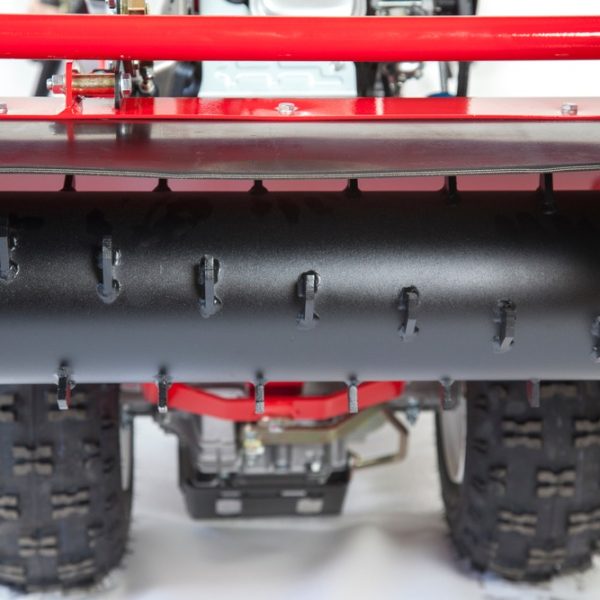

3) Rotor Specs

  • Tungston Carbide Rotor Teeth
  • 48 Teeth Per rotor
  • 6” Rotor Diameter

Machine Dimensions

1) 485 LBS Curb Weight

2) 74”L x 44”W x 44”H
