Specs

Drivetrain

1) Engine: Honda GVX390

• Oil: 1.1 Quart 10w-30
• Single cylinder 4-stroke gasoline engine.
• 390cc Displacement
• 17.8lb-ft Torque
• Splash/Pressure Lubrication
• Recoil Start

2) Transmission: Hydrostatic Tuff Torq K62

• Power Forward/Reverse
• Oil: 10w-30
• Torque Rating: 217lb-ft
• Top Speed 4.5MPH
• Locking Differential

3) Attachment Power: Mechanical Slipper Belt Design.

• Belt Drive From Clutch to Reduction Gearbox
• Dual Belt Drive From Gearbox to Edger Blade Shaft

Frame Specs

1) Schedule 40 welded steel tube

2) Powder Coated Frame

3) Dedicated-Use Tractor CANNOT be used with other attachments. Edger Machine Only.

Machine Features

1) Liquid Ballast Filled Drive Tires

2) 2.5 Gallon Fuel Tank.

Edger Specifications

1) Cutting Speed

• All Bed Opener / Trencher Blades – 30-60 Feet Per Minute

2) Edger Minimum Tree Circle Diameter

• 16T Opener Blade – 0”

3) Compatible Blades

• 16T Opener/Pulverizer Blade – 5” Max Depth
• T5 Brick Blade – 5” Max Depth
• T3N Trencher – 7” Max Depth
• T3 Trencher – 7” Max Depth

4) Incompatible Blades

• 16G Bed Groomer Blade
• 16S Sidewalk Edging Blad

5) Blade Specs

• All Edging/Trenching Blades Have Tungsten-Carbide Tipped Teeth For Longevity

Machine Dimensions

1) 425 LBS Curb Weight

2) 64”L x 47”W x 44”H

Drivetrain

1) Engine: Honda GVX390

• Oil: 1.1 Quart 10w-30
• Single cylinder 4-stroke gasoline engine.
• 390cc Displacement
• 17.8lb-ft Torque
• Splash/Pressure Lubrication
• Recoil Start

2) Transmission: Hydrostatic Tuff Torq K62

• Power Forward/Reverse
• Oil: 10w-30
• Torque Rating: 217lb-ft
• Top Speed 4.5MPH
• Locking Differential

3) Attachment Power: Mechanical Clutch/Brake to belt drive. NORAM Clutch.

• Belt Drive From Clutch to Reduction Gearbox
• Dual Belt Drive From Gearbox to Edger Blade Shaft

Frame Specs

1) Schedule 40 welded steel tube

2) Powder Coated Frame

3) Multi-use Tractor can be used for other attachments

Machine Features

1) Liquid ballast filled drive tires

2) 2.5 Gallon Fuel Tank.

Edger Specifications

1) Cutting Speed

• All Opener / Trencher Blades – 30-60 Feet Per Minute
• 16G Groomer / 16S Sidewalk – 150 Feet Per Minute

2) Edger Minimum Tree Circle Diameter

• 16T Opener Blade – 0”
• 16G Groomer Blade – 18”

3) Compatible Blades

• 16T Opener/Pulverizer Blade – 5” Max Depth
• T5 Brick Blade – 5” Max Depth
• T3N Trencher – 7” Max Depth
• T3 Trencher – 7” Max Depth
• 16G Groomer Blade – 5” Max Depth
• 16S Sidewalk Blade – 5” Max Depth

4) Blade Specs

• All Edging/Trenching Blades Have Tungsten-Carbide Tipped Teeth For Longevity
• 16S / 16G Are not Tungsten-Carbide Tipped

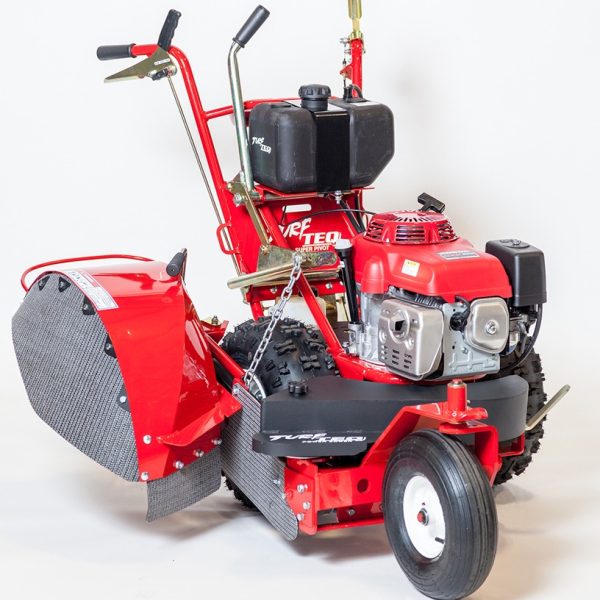

5) Pivoting Edger Arm

• Required for use with 16G Groomer Blade
• Can Be Raised For Transport

Machine Dimensions

1) 425 LBS Curb Weight

2) 64”L x 47”W x 44”H
