Specs

Drivetrain

1) Engine: Honda GVX390

• Oil: 1.1 Quart 10w-30
• Single cylinder 4-stroke gasoline engine.
• 390cc Displacement
• 17.8lb-ft Torque
• Splash/Pressure Lubrication with oil filter
• Recoil Start

2) Transmission: Hydrostatic Tuff Torq K62

• Power Forward/Reverse
• Oil: 10w-30
• Torque Rating: 217lb-ft
• Top Speed 4.5MPH
• Locking Differential

3) Attachment Power: Mechanical Clutch/Brake to belt drive. NORAM Clutch

Frame Specs

1) Schedule 40 welded steel tube

2) Powder Coated frame

3) Multi-use Tractor can be used for other attachments

Machine Features

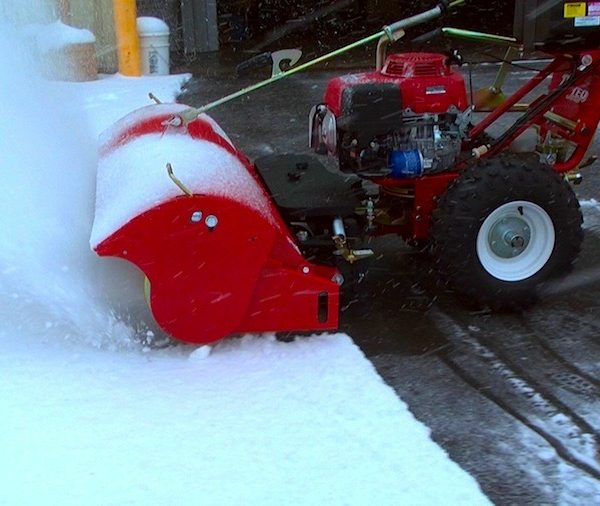

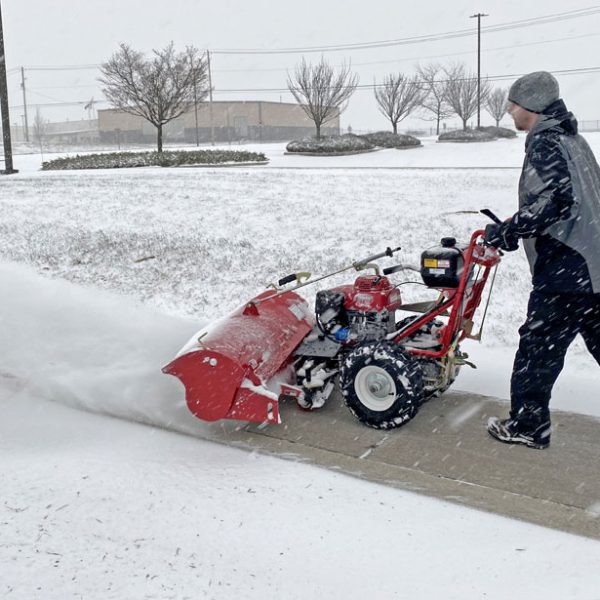

1) Max snow removal depth 5”

2) Brush Pivots 16 degrees left/right. 32 degrees of total movement

3) Transmission features differential lock

4) Floating brush head with spring controlled down pressure

5) Polyethylene caster wheels located behind brush head

6) Hood can be easily lifted out of the way for service

7) Single piece welded broom hood

8) Liquid ballast filled drive tire

9) Lift Handle to raise/lower brush head for transport.

10) 2.5 Gallon Fuel Tank.

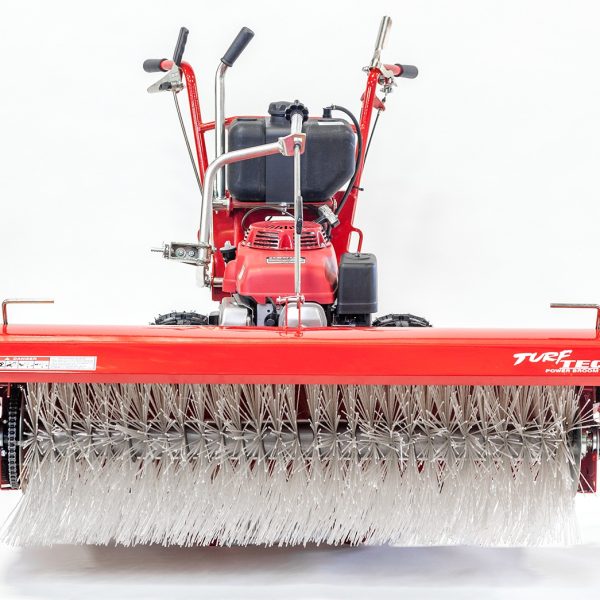

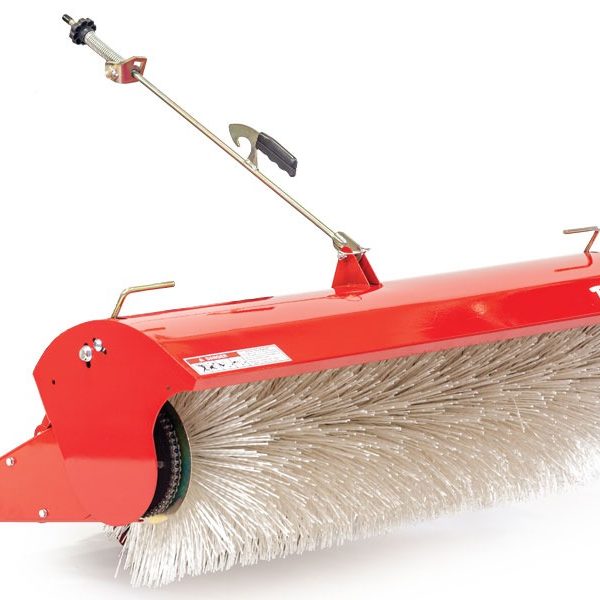

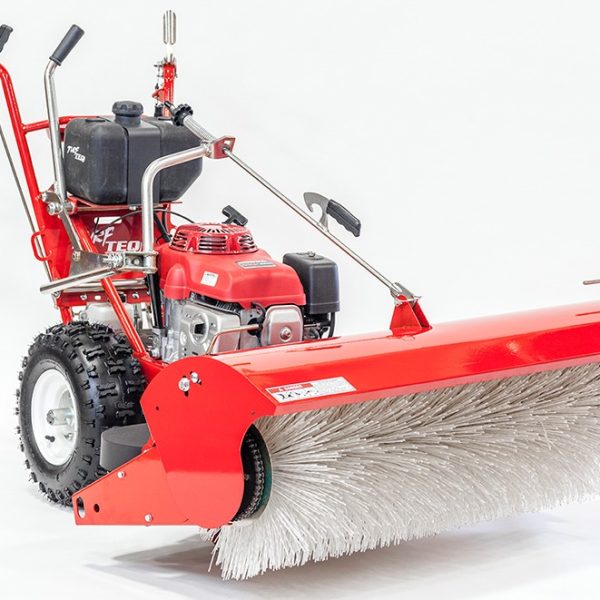

Brush Specifications

1) 46” wide Polypropylene – Single piece Brush

2) 18” Diameter

Machine Dimensions

1) 510LBs Curb Weight

2) 74”L x 53”W x 44”H
