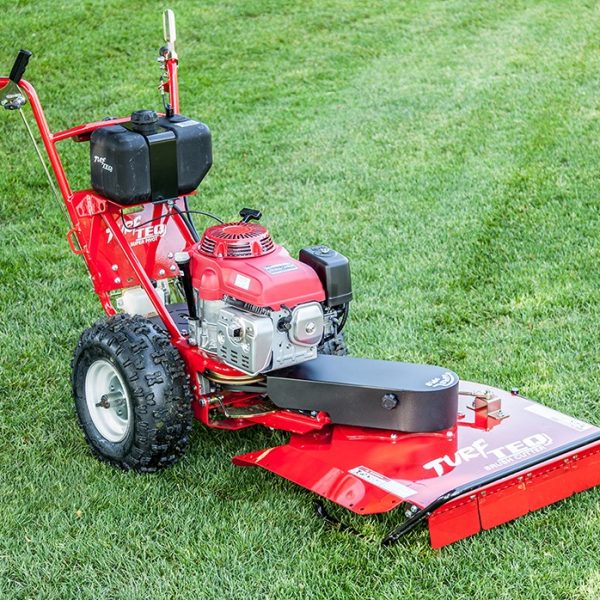

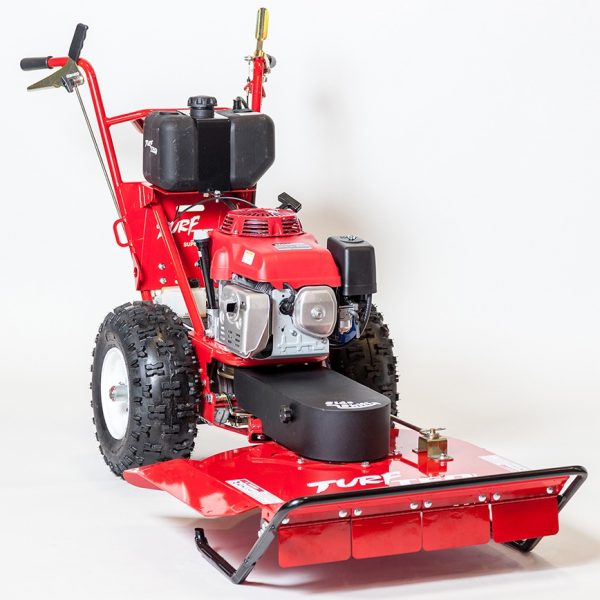

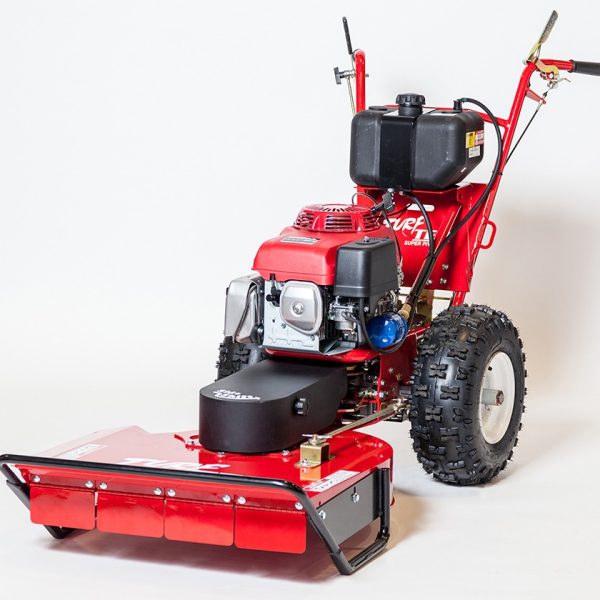

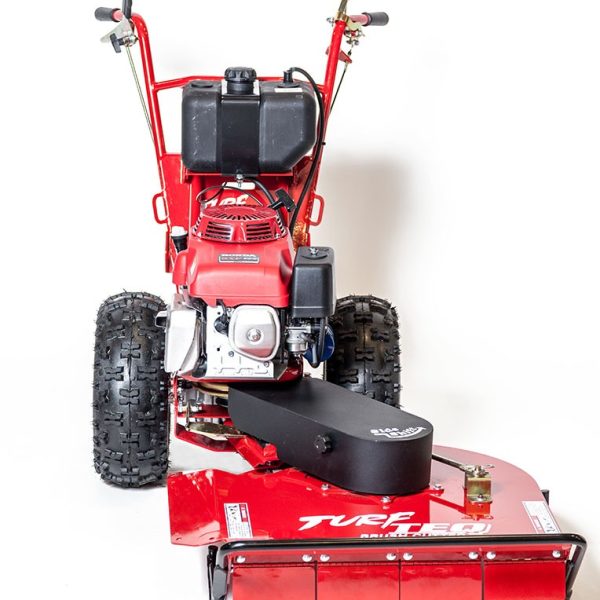

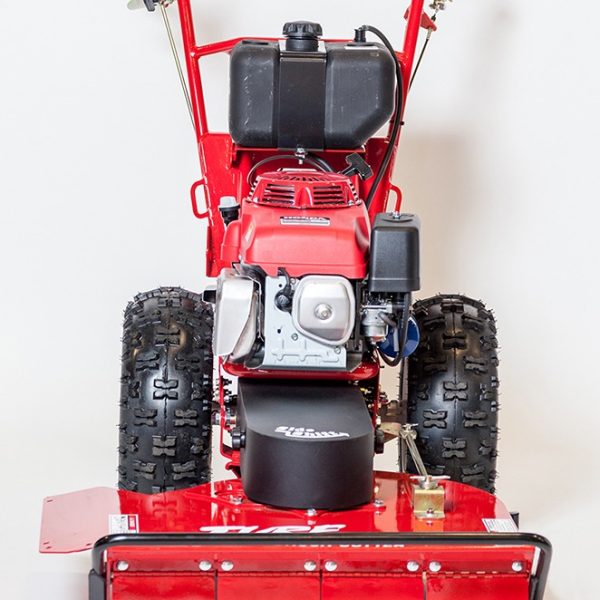

Specs
Drivetrain
1) Engine: Honda GVX390
- Oil: 1.1 Quart 10w-30
- Single cylinder 4-stroke gasoline engine.
- 390cc Displacement
- 17.8lb-ft Torque
- Splash/Pressure Lubrication
- Recoil Start
2) Transmission: Hydrostatic Tuff Torq K62
- Power Forward/Reverse
- Oil: 10w-30
- Torque Rating: 217lb-ft
- Top Speed 4.5MPH
- Locking Differential
3) Attachment Power: Mechanical Clutch/Brake to belt drive. NORAM Clutch.
- Belt Drive From Clutch to Blade Shaft
Frame Specs
1) Schedule 40 Welded Steel Tube
2) Powder Coated Frame
3) Multi-use Tractor Can Be Used For Other Attachments
Machine Features
1) Liquid Ballast Filled Drive Tires
2) 2.5 Gallon Fuel Tank.

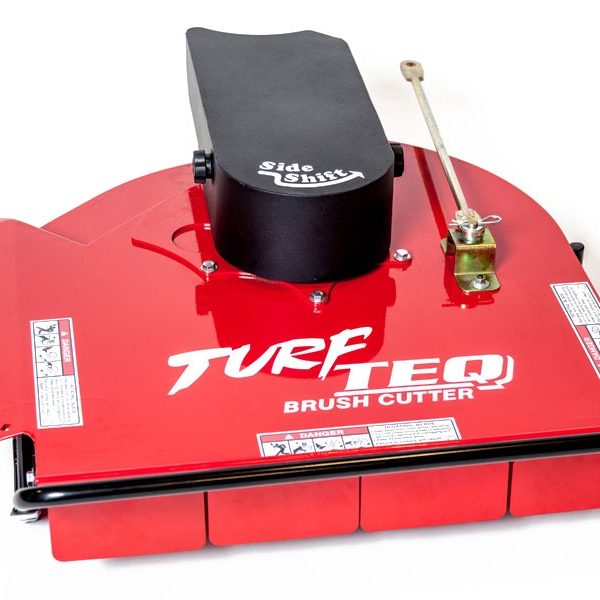

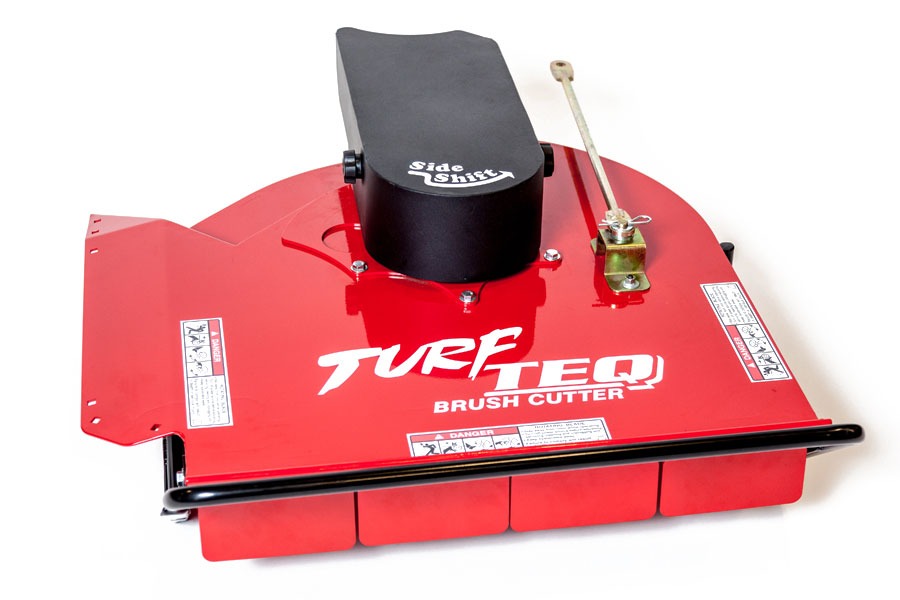

Brush Cutter Attachment Specifications
1) Cutting Blade Specs
- 26” Diameter
- 19,000 FPM Blade Tip Speed
- Double sided Blade
2) Cutting Deck
- Can Offset 12” Left To Get Under Trees / Protect Operator For Thorn Bushes
- Oscillates On Horizontal Axis 15 Degrees To Stay Close To The Ground In Uneven Terrain
- Overall Deck Width – 33”
- 11GA Deck Steel Thickness
3) Maximum Sapling Cutting Diameter – 3”
Machine Dimensions
1) 410 LBS Curb Weight
2) 77”L x 33”W x 44”H
